Architectural decorative mesh

Wire Mesh Belt Curtain

Simple, generous weave with a transparent effect — a low-cost, durable belt curtain for facades, partitions, screens and ceilings.

Response6 hours
ProductionCustom
Images4
Wire Mesh Belt Curtain
Wire Mesh Belt Curtain reference
Wire Mesh Belt Curtain reference
Wire Mesh Belt Curtain reference
Wire Mesh Belt Curtain reference

Best use

Building facades

Key material / spec

Stainless steel, brass

Quotation basis

Dimensions, material, finish, quantity and application environment.

Product overview

Designed around project drawings, finish intent and installation conditions.

Wire mesh belt curtain uses high-quality stainless steel wire or flat stainless steel wire as raw material. Its simple, generous weaving structure and transparent effect give it a broad range of use, while costing less than other metal screen partition products.

It offers high strength, consolidation, easy maintenance and a vivid decorative effect, and plays an excellent role in protecting building structures. Installation is simple and convenient; its form is special and elegant under different light, environments and intervals.

It is widely used in building facades, indoor partitions, screens, ceilings, walls, curtains, balconies and corridors of office areas, airports, hotels, exhibition halls, opera houses, shopping malls, bars and private residences.

Linked applications

Applications that match this product

View all applications →

Typical use cases

  • Building facades
  • Indoor partitions and screens
  • Ceilings, walls and curtains
  • Balconies and corridors

Specification

Main specification reference

Use these values as the starting point. Final mesh opening, finish, panel size and installation method should be confirmed against drawings.

Material
Stainless steel, brass
Dimensions
a: 100 mm, b: 4.5 mm, c: 1 mm / a: 100 mm, b: 7 mm, c: 1.4 mm
Weight
1.6 kg/m², 2.2 kg/m²
Width
Max 3,000 – 4,000 mm
Open area
76%
Surface treatment
Degreased, natural, patina over time

Visual reference

Product photos and detail views

Wire Mesh Belt Curtain detail reference
Wire Mesh Belt Curtain detail reference
Wire Mesh Belt Curtain detail reference
Wire Mesh Belt Curtain detail reference

Original product content

Detailed product introduction and gallery

The detailed product descriptions and image displays from the original product pages are reorganized below for easier reading and comparison.

01

Wire Mesh Belt Curtain

Wire Mesh Belt Curtain uses high-quality stainless steel wire or flat stainless steel wire as raw materials, simple and generous weaving structure, the transparent effect so that it has a broader range of use. In addition, compared with other metal screen partition products, the cost is low and durable and other excellent characteristics.

Wire Mesh Belt Curtain has high strength, consolidation, easy maintenance, strong function, vivid and strong decoration effect, and can play an excellent role in the maintenance of building structures. Its device is simple and convenient, and its shape is special and elegant. Different light, different environments, different intervals, different tones, widely used in building facades, indoor partitions, screens, ceiling, walls, curtains, balconies, and corridors. It has been widely used in high-grade interior and exterior decoration of high-grade office areas, airports, hotels, exhibition halls, opera houses, shopping malls, bars, private residences, etc.

02

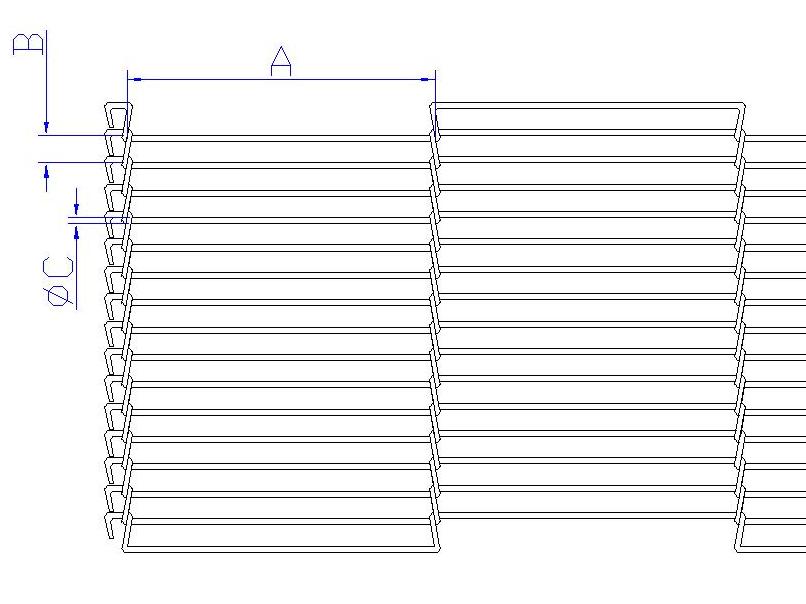

Main Specifications of Wire Mesh Belt Curtain

Product Name: Wire Mesh Belt Curtain

Material: Stainless steel,brass

Dimensions: a: 100 mm; b: 4,5 mm; c: 1 mm. a: 100mm; b:7mm; c: 1,4mm

Weight: 1,6 kg/㎡, 2,2 kg/㎡

Surface treatment: Degreased, natural, patina over time

Width: Max 3000 mm – 4000 mm

Open Area: 76%

Wire Mesh Belt Curtain - Main Specifications of Wire Mesh Belt Curtain
03

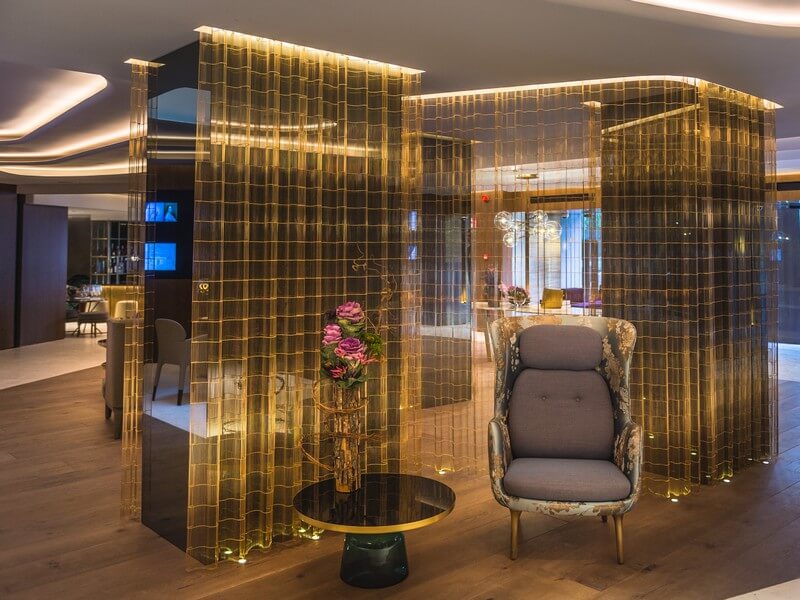

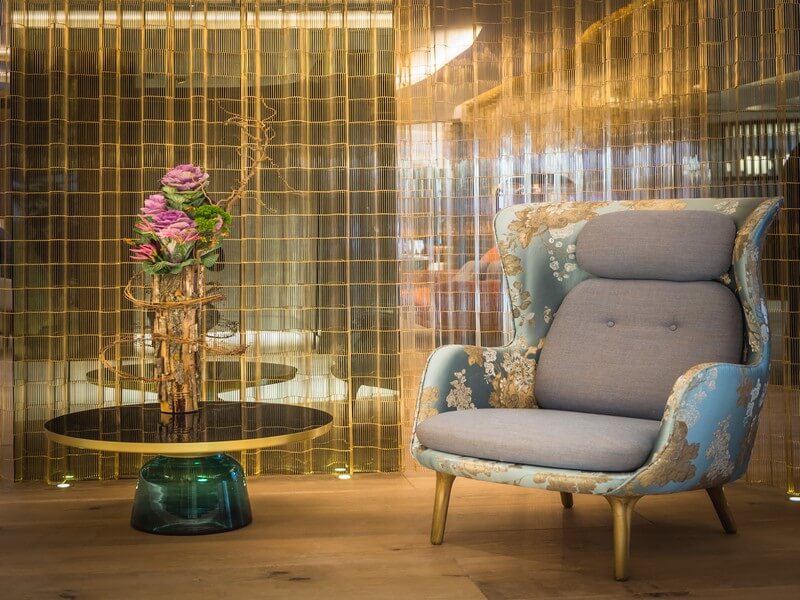

Application Effect

Wire Mesh Belt Curtain - Application Effect
04

WMBC-02: Wire Mesh Belt Curtain For Hotel

Wire Mesh Belt Curtain - WMBC-02: Wire Mesh Belt Curtain For Hotel

FAQ

Frequently asked questions

Will the brass version change color over time?+

Yes — untreated brass develops a warm patina naturally. If you prefer the original tone, order the degreased and lacquered finish, which locks the color in.
