Metal Chain Curtain

Flexible chain link drapery with the gloss of metal — fireproof, ventilating and light-transmitting, for hotels, restaurants and exhibition halls.

Metal Chain CurtainOpen image

Overview

Flexible metal drapery for light, airflow and spatial separation.

Metal chain curtain is a new type of metal curtain for modern interior decoration, also called metal coil drapery or chain mesh curtain. It combines the flexibility and foldability of traditional cloth curtains with the gloss of metal wire.

Compared with a traditional curtain, metal coil drapery offers excellent fireproof performance, ventilation and light transmission, giving it a much longer service life. Its dynamic, fashionable metal texture makes high-end hotels, restaurants, opera houses and exhibition halls more magnificent.

Material
Stainless steel, copper, aluminum, aluminum alloy, etc.
Wire diameter
0.5 mm – 1.2 mm
Aperture size
3 mm – 20 mm
Weight
1.7 – 6 kg/m² (depending on shape and material)

Features

  • Fireproof, ventilating and light-transmitting
  • Flexible and foldable like fabric, durable like metal
  • Rich color options via anodizing or baking varnish
  • Custom widths and drops made to measure

Applications

Interior Partition & Space DividerRetail, Hotel & Exhibition DecorationHotel and restaurant space dividersExhibition hall and opera house decorationCeiling and wall treatmentsWindow drapery and sun shadingFireplace screens and lighting decoration

Quote basis

Product type or reference imageWidth, height and quantityMaterial and surface finishApplication environment

Specification

Main specification reference

Keep these values as a starting point. Final mesh opening, finish, drop length and installation method should be confirmed against drawings.

Material
Stainless steel, copper, aluminum, aluminum alloy, etc.
Wire diameter
0.5 mm – 1.2 mm
Aperture size
3 mm – 20 mm
Weight
1.7 – 6 kg/m² (depending on shape and material)
Open area
40% – 85%
Surface treatment
Baking varnish, anodic oxidation, acid washing
Color
Original metallic or sprayed: silver, brass-yellow, ultra-black, Chinese red, purple, bronze, pearl gray, etc.
Specification Reference
MaterialWire diameterApertureAperture (in)ThicknessWeight
Carbon steel0.9 mm6.3 mm3/16″5.8 mm4.0 kg/m²
Carbon steel1.2 mm8.5 mm1/4″7.1 mm6.0 kg/m²
Carbon steel1.0 mm6.8 mm1/4″6.5 mm5.5 kg/m²
Stainless steel1.0 mm8.4 mm1/4″6.7 mm3.5 kg/m²
Stainless steel1.2 mm6.8 mm3/16″6.5 mm5.8 kg/m²
Stainless steel1.2 mm8.5 mm1/4″7.1 mm5.0 kg/m²
Al-Mg alloy1.2 mm8.5 mm1/4″7.1 mm2.0 kg/m²
Al-Mg alloy1.2 mm6.8 mm3/16″6.5 mm2.5 kg/m²
Al-Mg alloy1.0 mm5.5 mm3/16″5.5 mm2.2 kg/m²

Details

Product notes, simplified for reading

Metal Chain Curtain

Metal chain curtain is a new type of metal curtain for modern interior decoration. It is also called metal coil drapery or chain mesh curtains. Wire mesh curtain not only has the flexibility and foldability of traditional cloth curtains but also has the gloss of metal wires. Compared with the traditional curtain, metal coil drapery has excellent fireproof property, ventilation, and light transmission, thus it has a longer service life. It has the characteristics of dynamic fashion and metal texture, which will make the high-end hotels, restaurants, opera houses and exhibition halls more magnificent.

Main Specifications of Metal Chain Curtain

Material: Stainless steel, copper, aluminum, aluminum alloy, etc.

Wire diameter: 0.5 mm – 1.2 mm

Aperture size: 3 mm – 20 mm

Weight: 1.7 kg/m2 – 6 kg/m2 (depending on shape and material chosen).

Open area: 40% – 85%

Surface treatment: Baking varnish, anodic oxidation, acid washing.

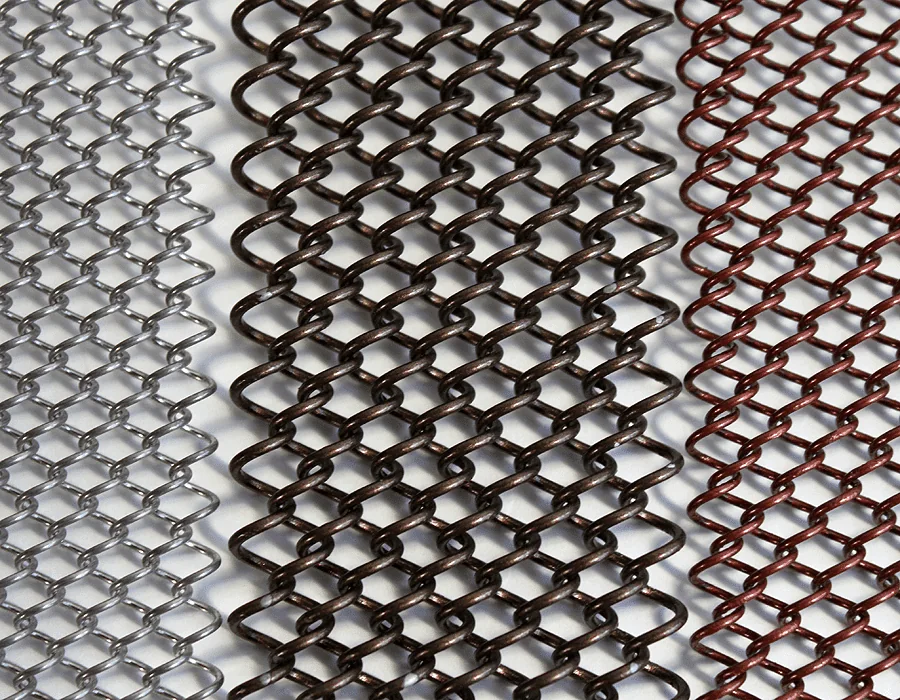

Color: Original metallic color or spray into other colors. (Silver, brass-yellow, ultra-black, Chinese red, purple, bronze, pearl gray, etc.)

Metal chain curtain begins with a base metal wire available in varieties of steel, aluminum, brass, copper, or stainless steel. Wire material and gauge impact weight, functionality, and aesthetics – so we can help you select the best material and gauge based on your project's requirements.

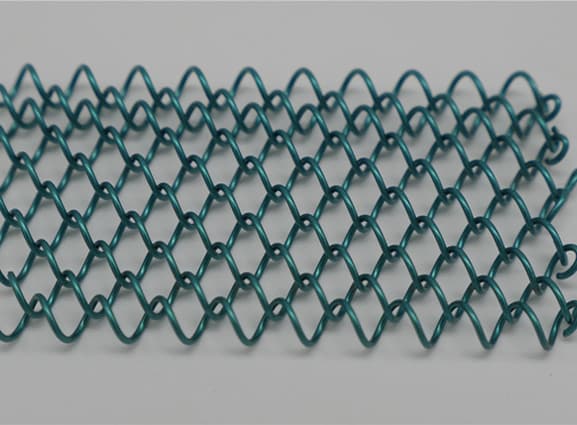

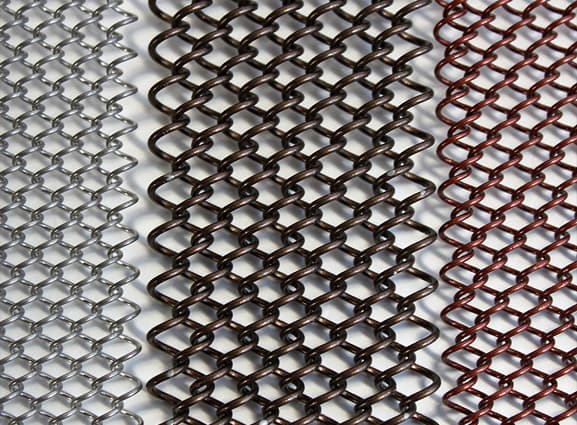

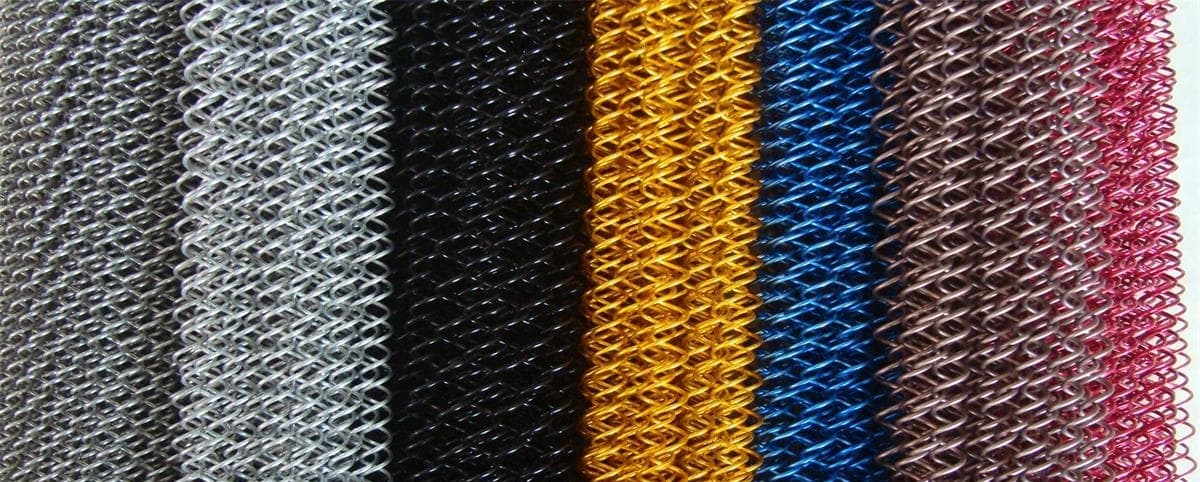

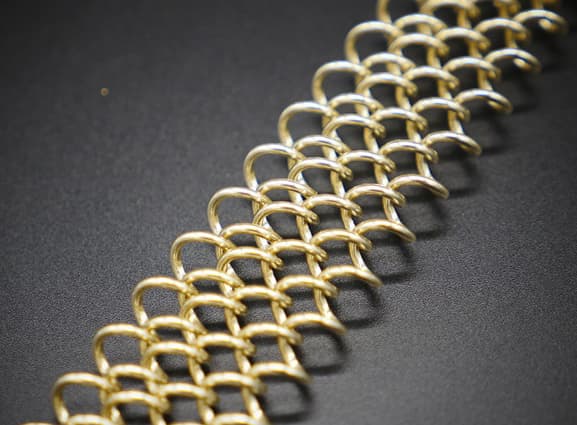

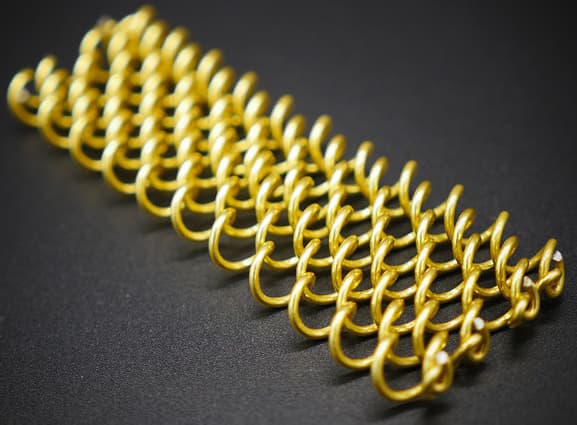

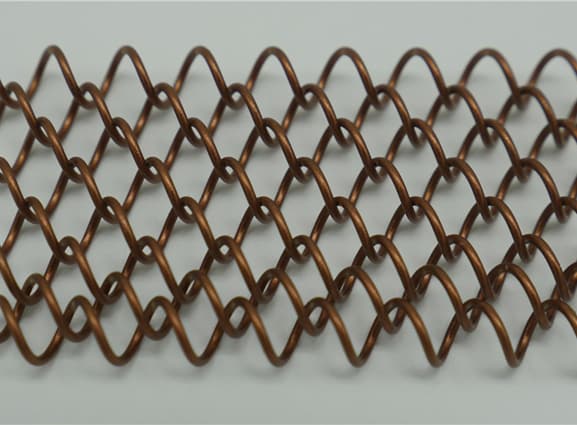

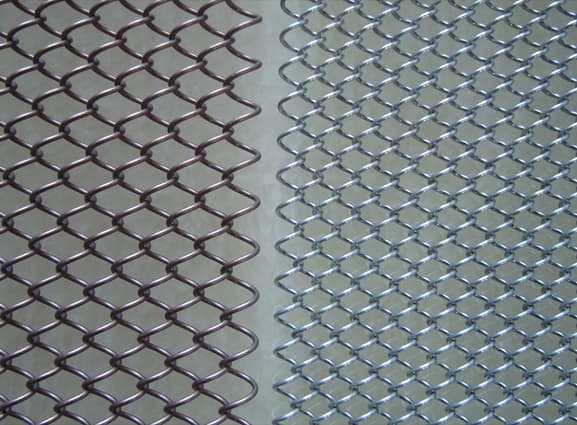

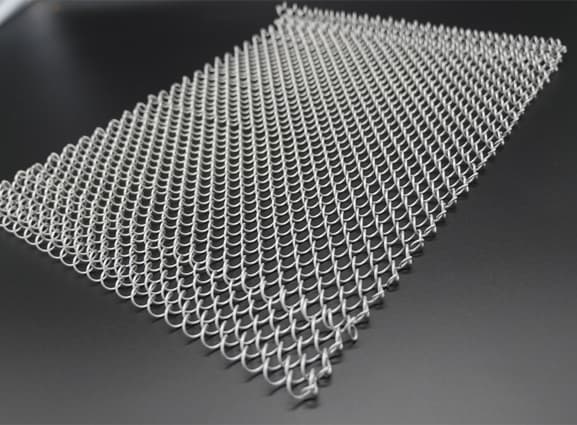

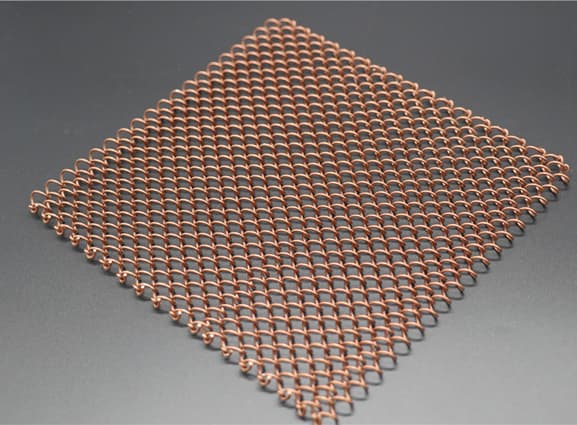

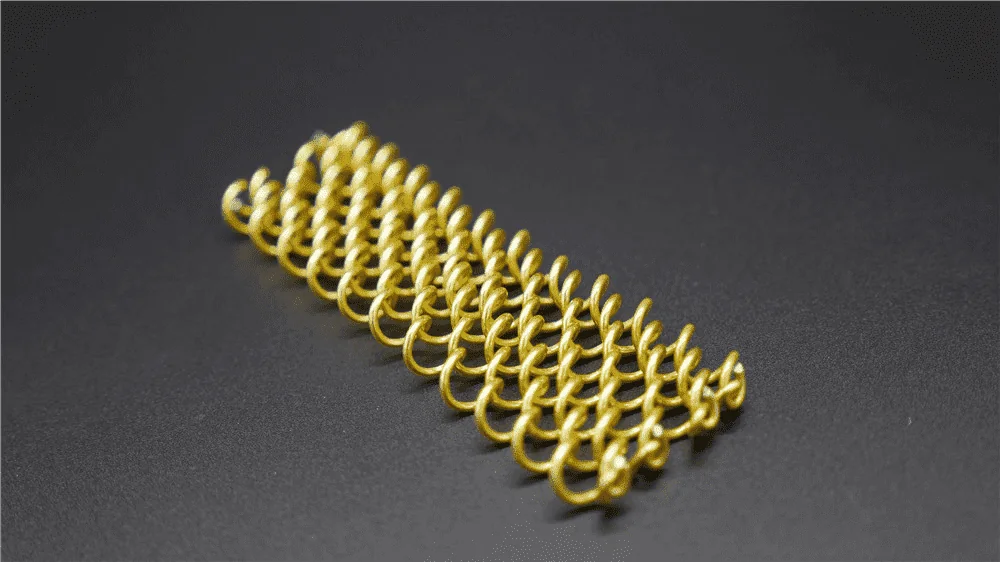

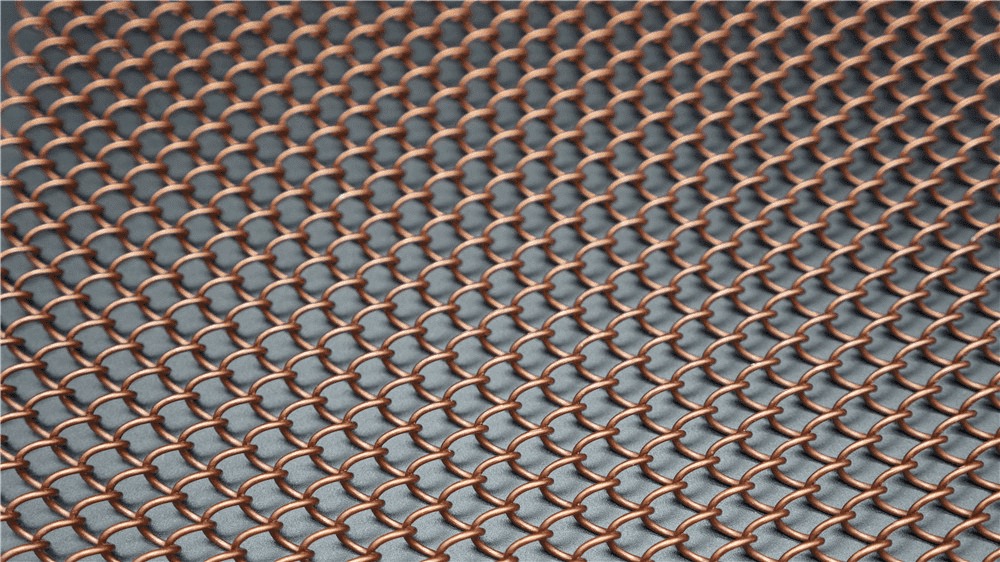

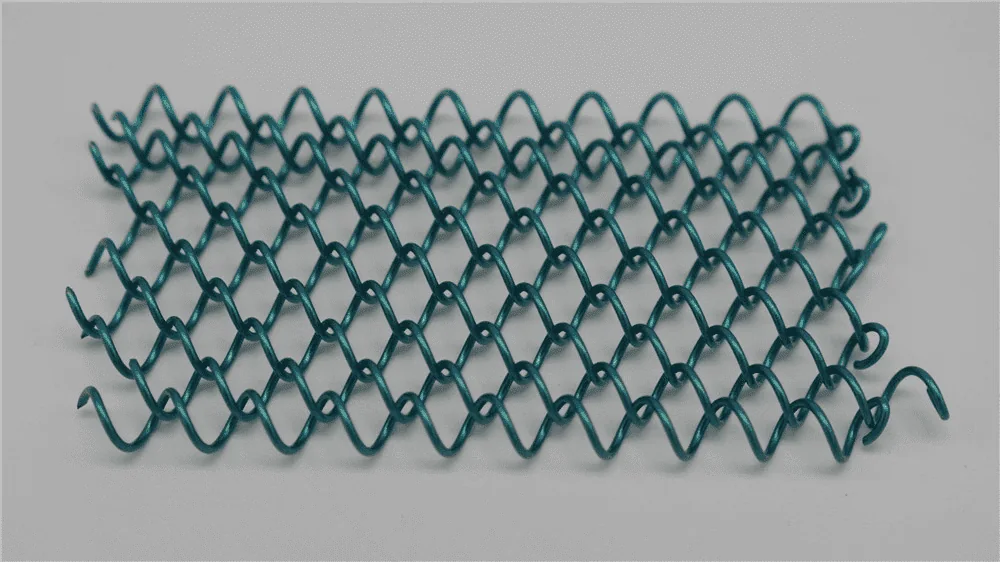

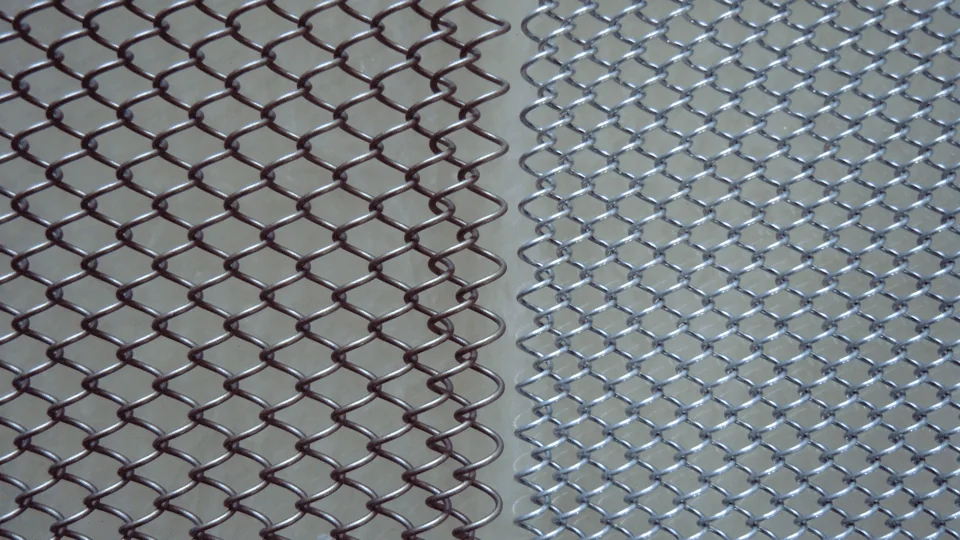

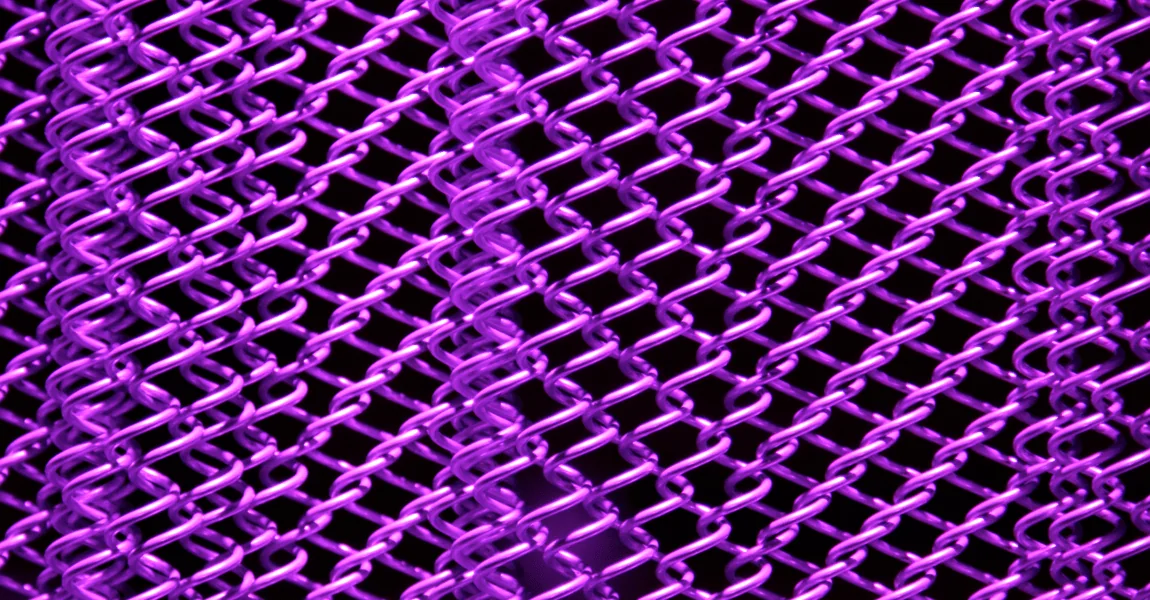

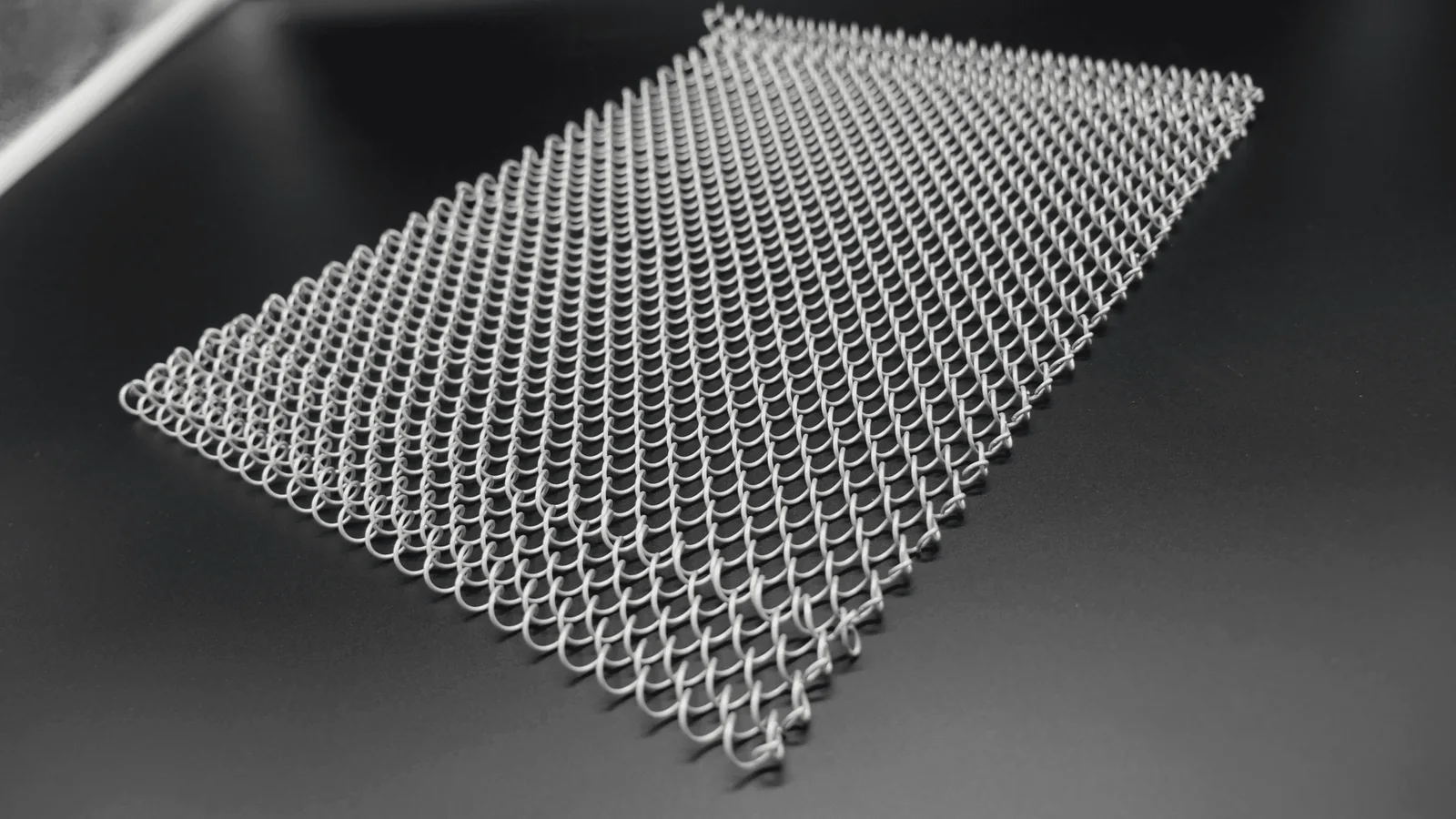

Products Show

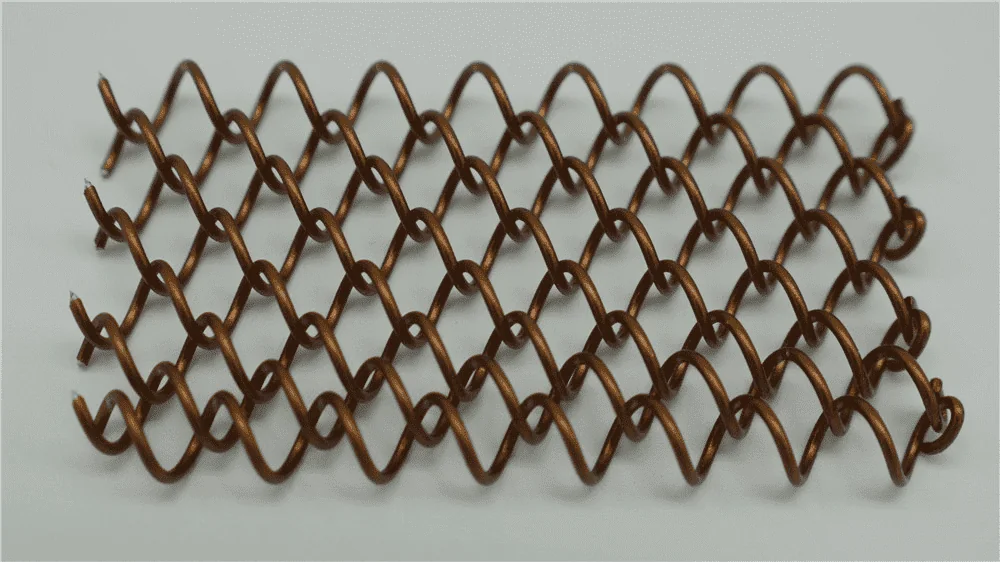

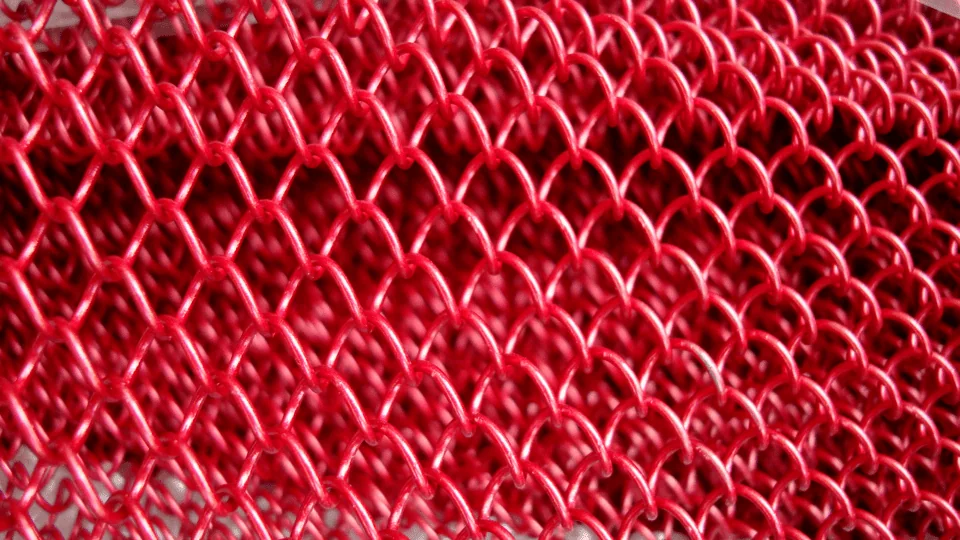

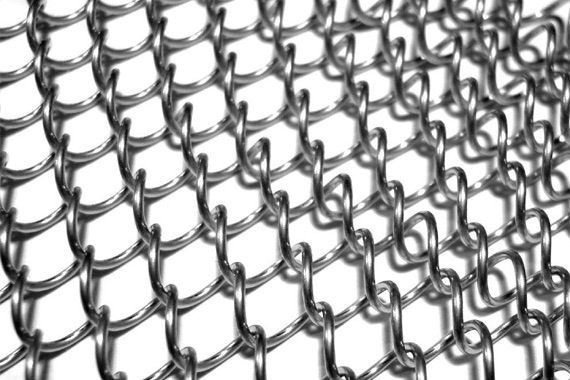

The winding wire adds fullness, the woven coil adds fluency and the corrugated curtain adds mystery. Aside from these, the metal coil curtain also owns various colors and sizes. Gathered, metal coil drapery gives people an effective impression. You need only to slide the tabs onto the rod. as a result of its particularly free-flowing effect, supple and sensual drape to make it hang just right.

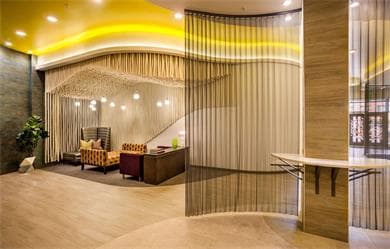

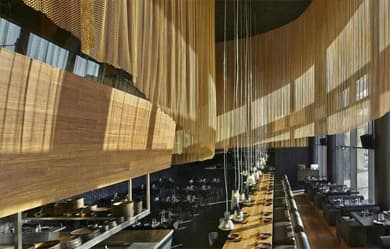

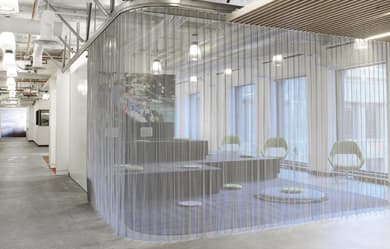

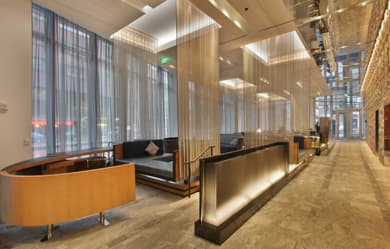

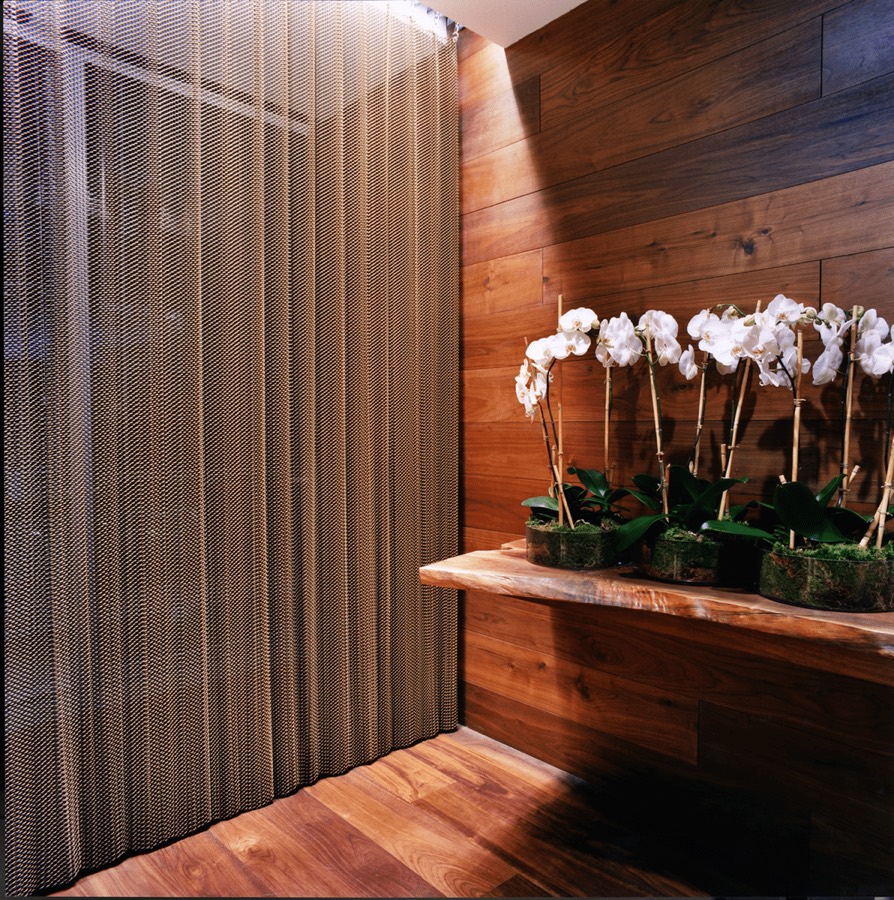

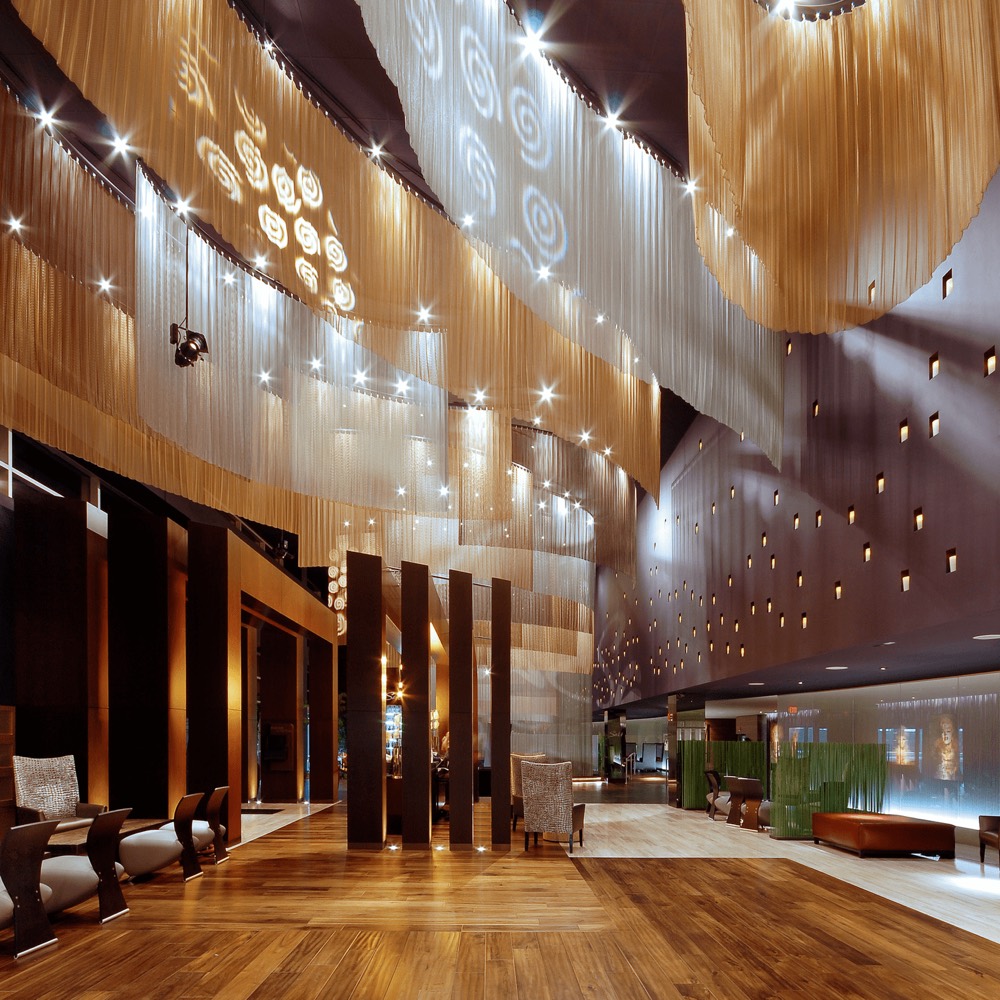

Application Display of Metal Chain Curtain

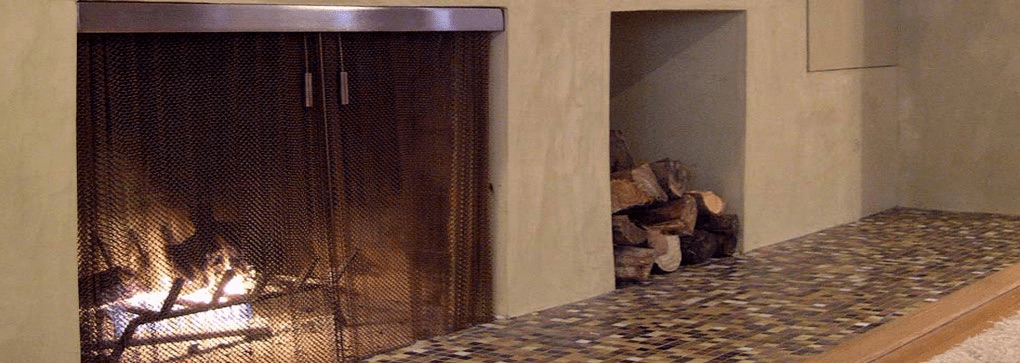

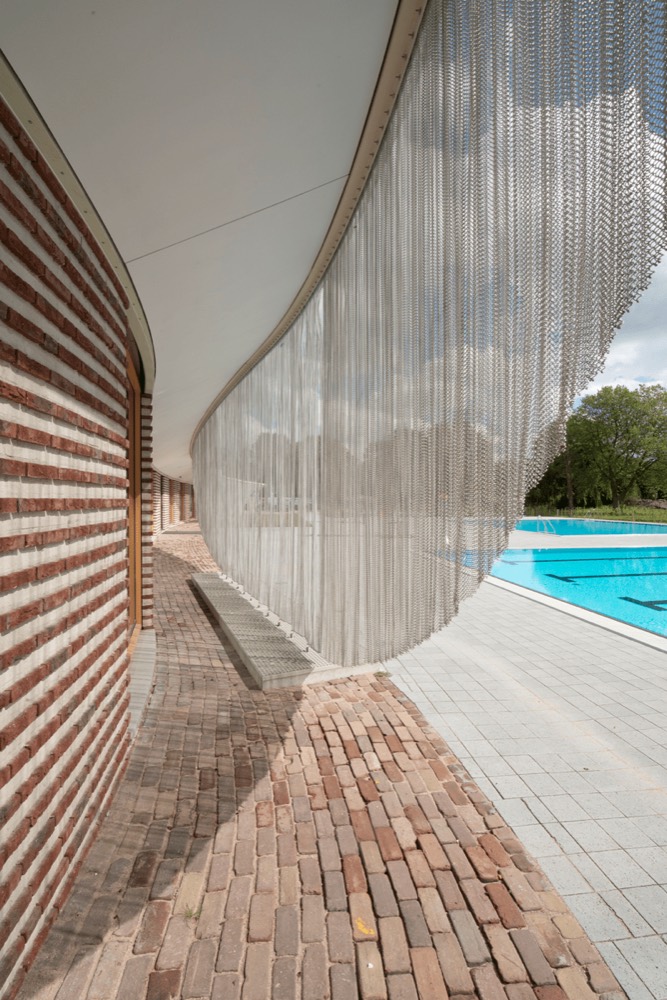

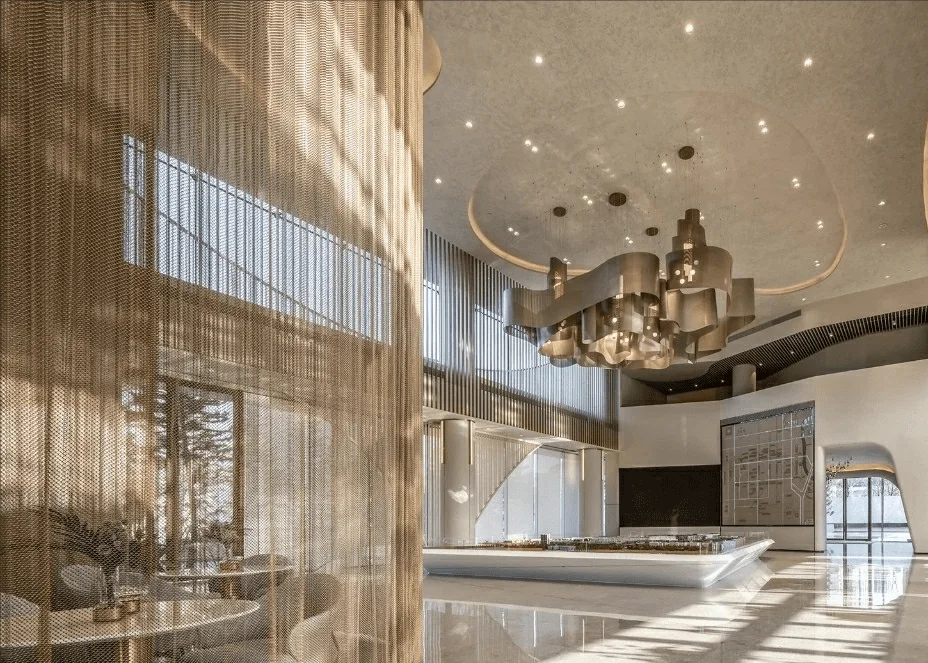

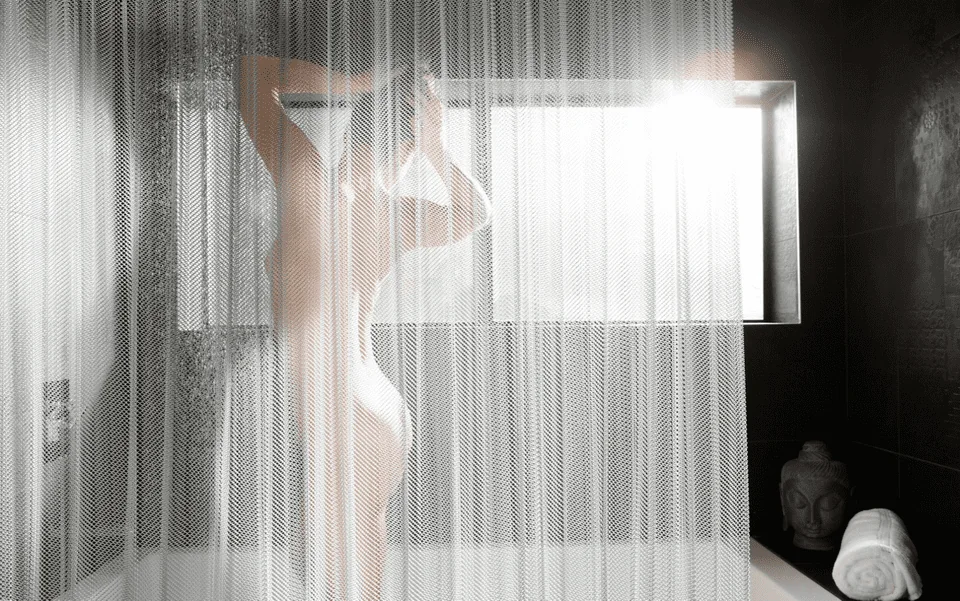

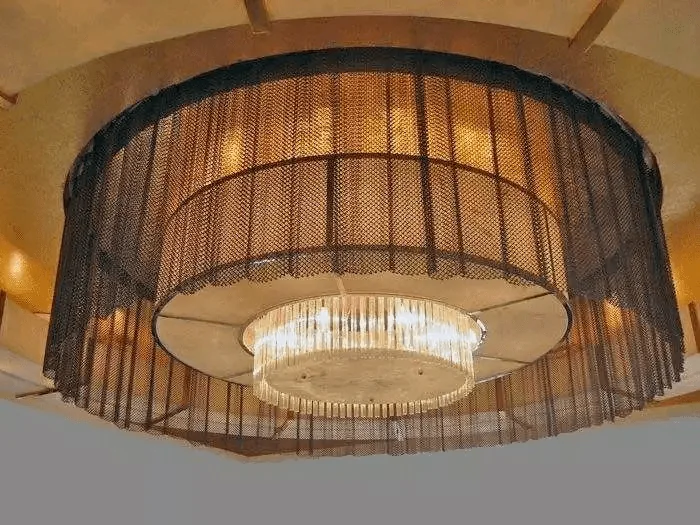

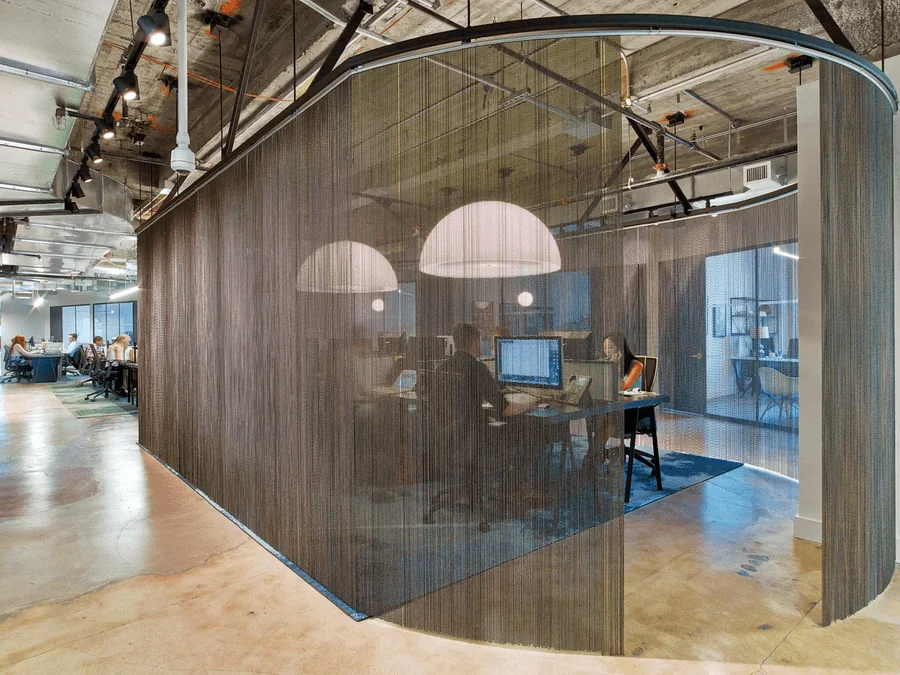

When used as decoration, metal chain curtain looks like a whole piece, which differs from the strip-type chain link curtain. Due to the luxurious and practical features, the metal chain curtain has been chosen as today's decoration style by much more designers. It has much application such as window treatment, architectural drapery, shower curtain, space divider, ceilings. It is applied broadly in exhibition halls, living rooms, restaurants, hotels, bathroom. Followings are the usage effect of metal chain curtain. In addition, the cost performance of the metal coil curtain is more suitable than chain link curtain and chainmail curtain. Metal chain curtain has a great many functions, such as Wall decoration, Metal mesh shower curtain, Space divider, Natural blast protection, Lamp shade, Door curtain, Fireplace mesh curtain, Building facade, Sound insulation, Security gate. In view of such functions, metal coil curtain can be applied in many places, such as Balcony, Exhibition hall, Window, Museum,Concert malls, Building elevation, Bathroom, Hotel, Office building, Fireplace.

Feature

Light diffusion and good ventilation.

UV resistant and flame resistant.

Beautiful appearance and various colors.

Versatility and decorative effects.

Aesthetic appeal and functionality.

Finishes are beautiful and resilient.

Color never fading and paint never dropping.

Gorgeous and high-end.

Durability and flexibility.

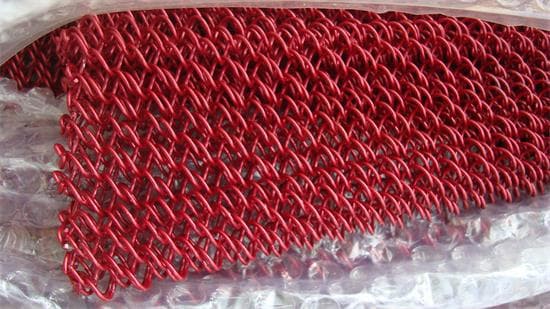

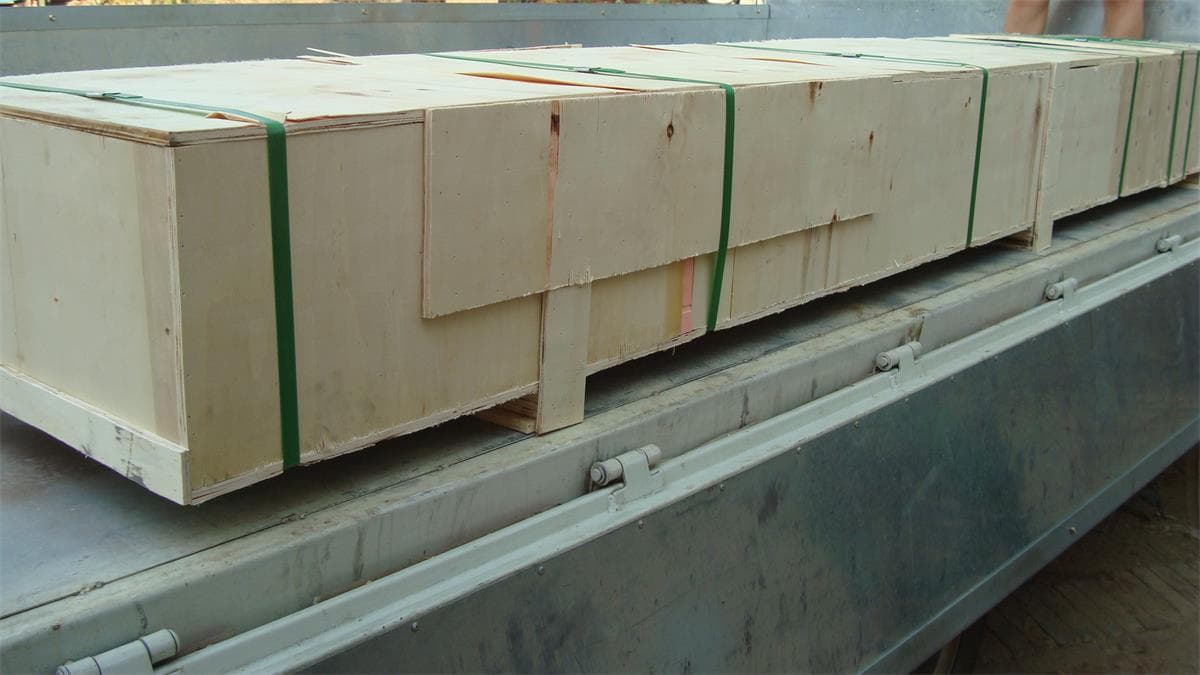

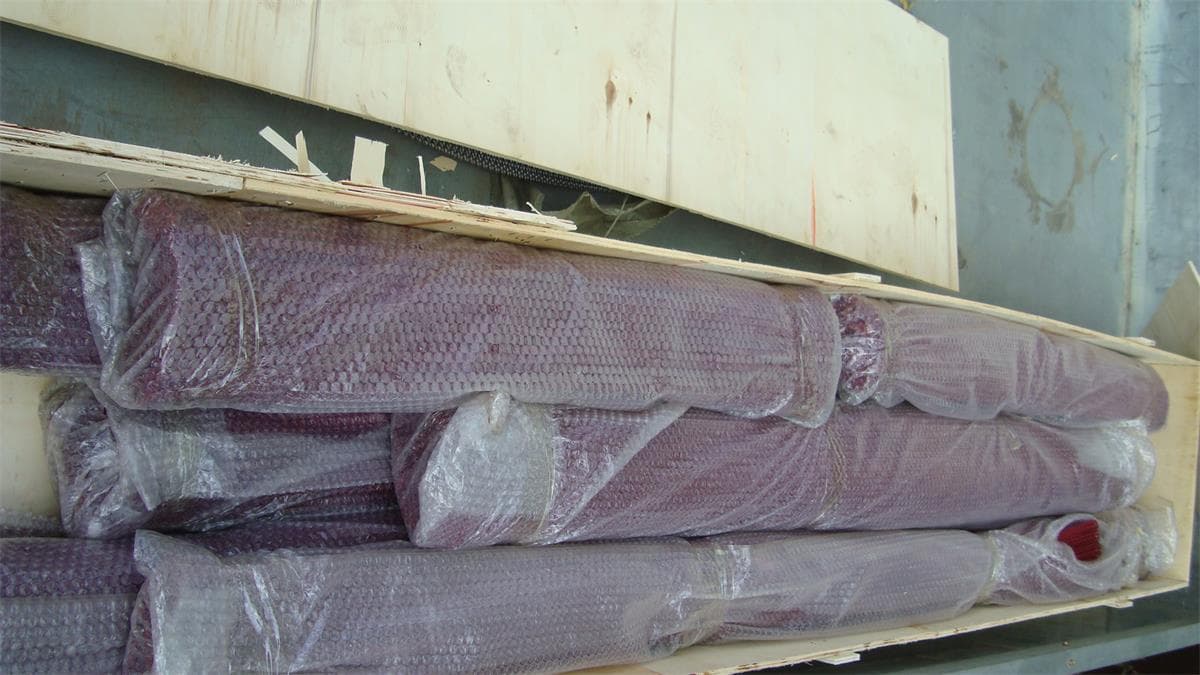

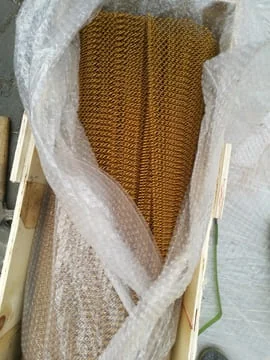

Packing Details of Metal Coil Curtain

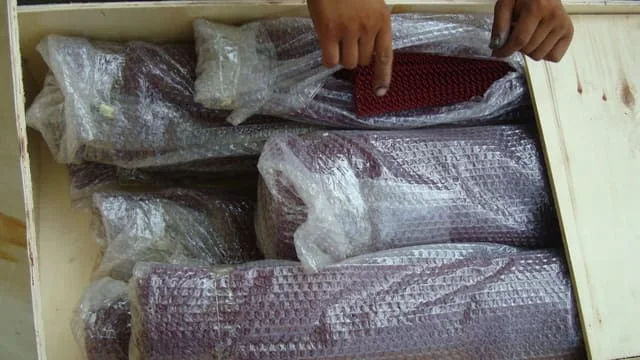

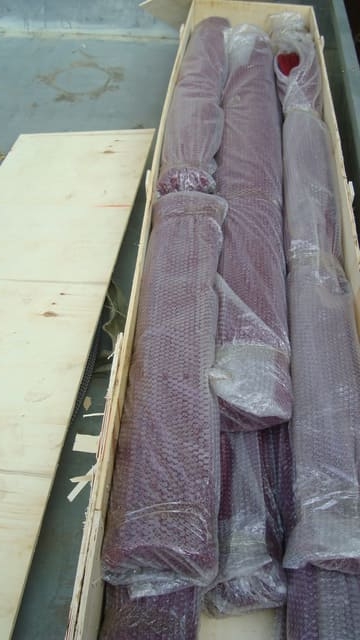

Usually, the metal chain curtain is rolled into rolls and wrapped in waterproof paper or plastic film, and then packed in wooden boxes customized according to the length of the metal chain curtain.

FAQ

Frequently asked questions

What is the maximum size for a single metal chain curtain?+

Width is effectively unlimited because panels link seamlessly side by side; single-panel drops of 6 m and more are routinely produced. Tell us your opening dimensions and we will engineer the panel layout.

Can metal chain curtains be used outdoors?+

Yes. Stainless steel and anodized aluminum versions resist rust and UV fading, and are widely used for facades, balconies and semi-outdoor dividers.

How are the curtains installed?+

The most common method is a top track or rod with hooks or rings, exactly like a fabric curtain. We supply matching track systems and hardware on request.
