Chainmail Curtain (Ring Mesh)

Thousands of linked stainless steel rings form a supple, free-flowing curtain with high tensile strength — for partitions, curtain walls and window treatments.

Response6 hours
ProductionCustom
Images2
Chainmail Curtain (Ring Mesh)

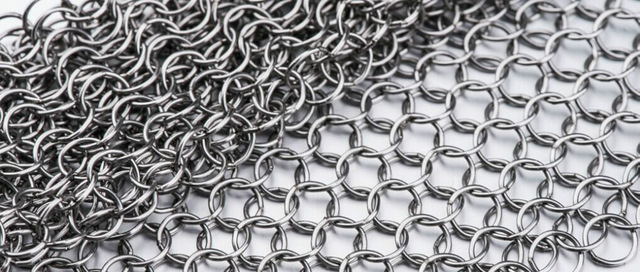

Chainmail Curtain (Ring Mesh) reference
Chainmail Curtain (Ring Mesh) reference

Best use

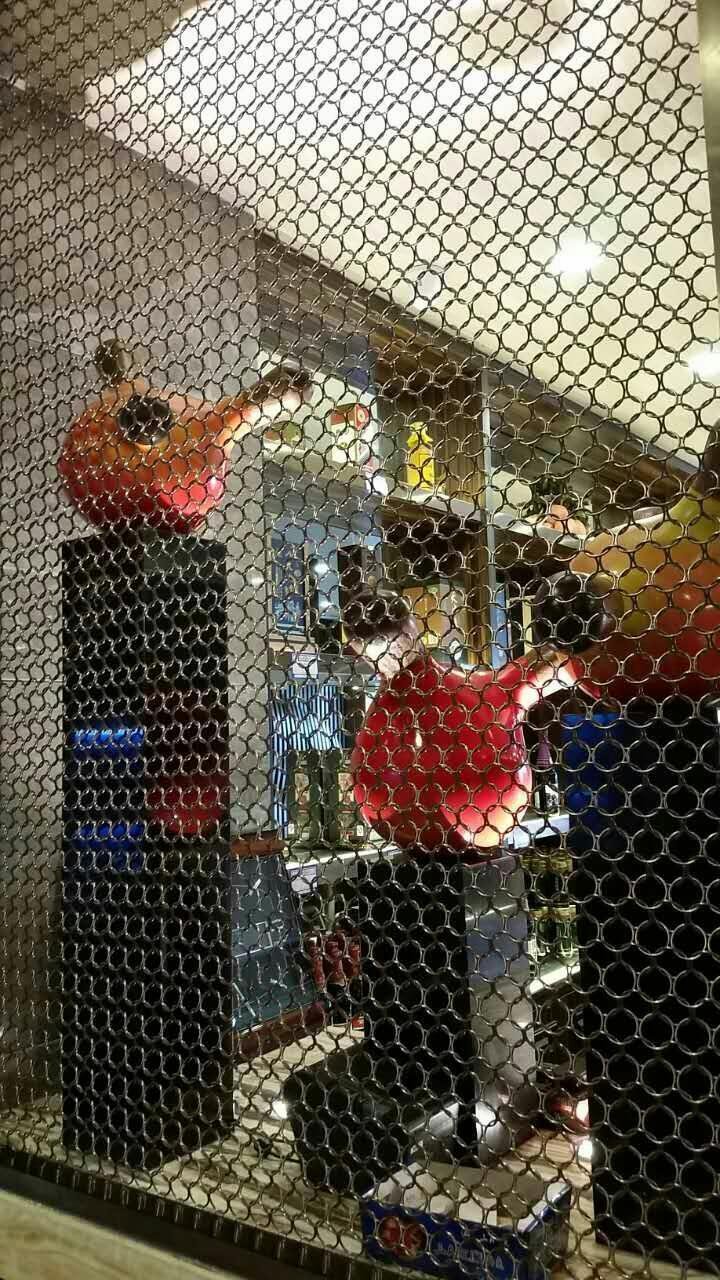

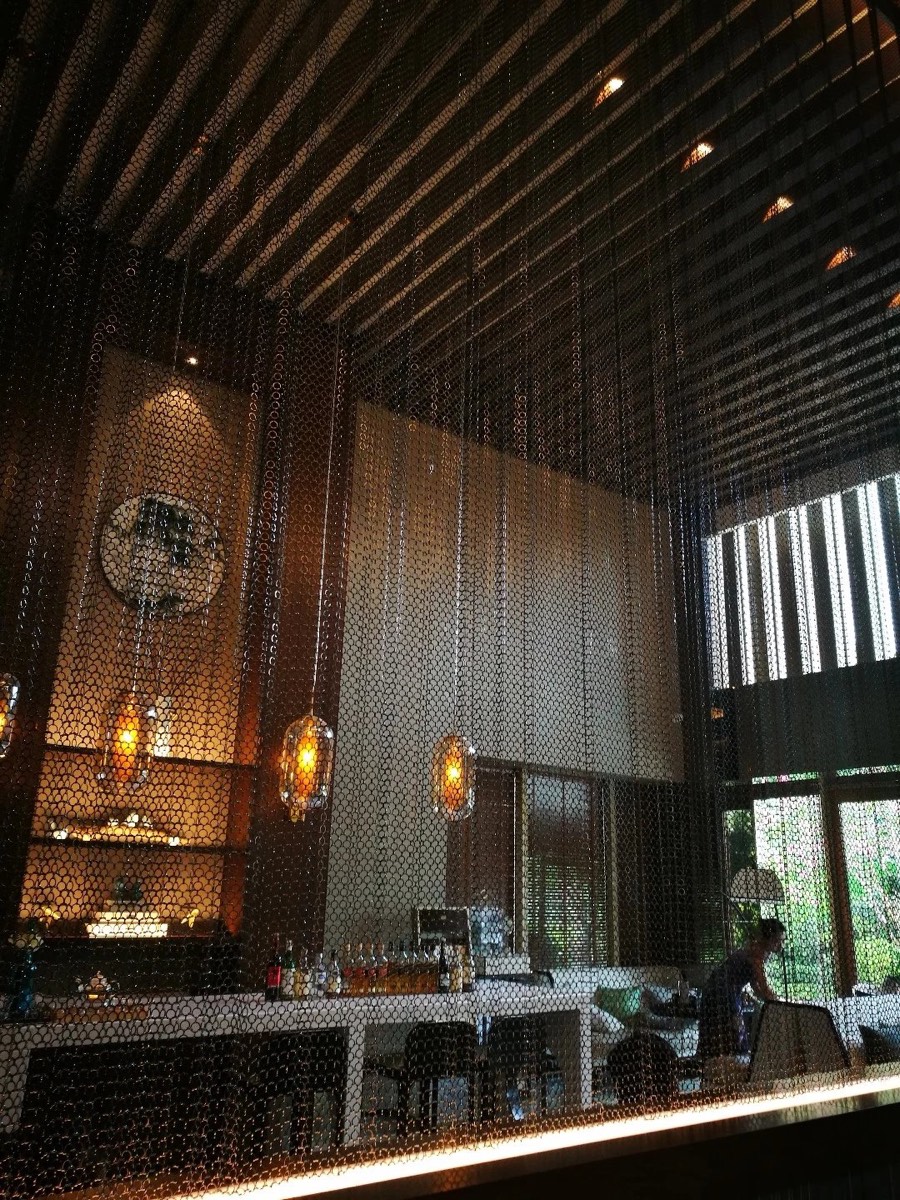

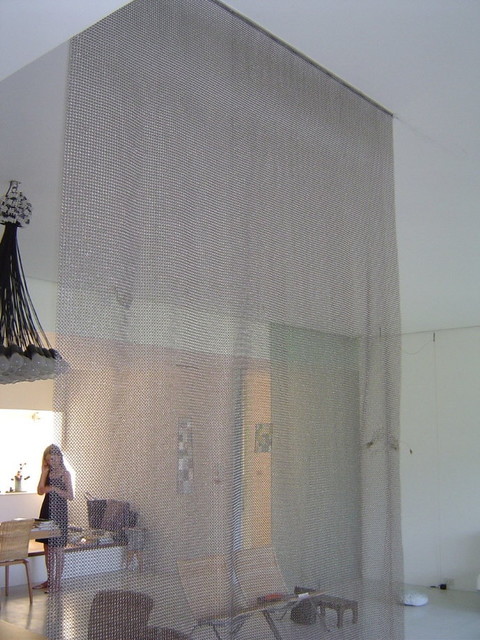

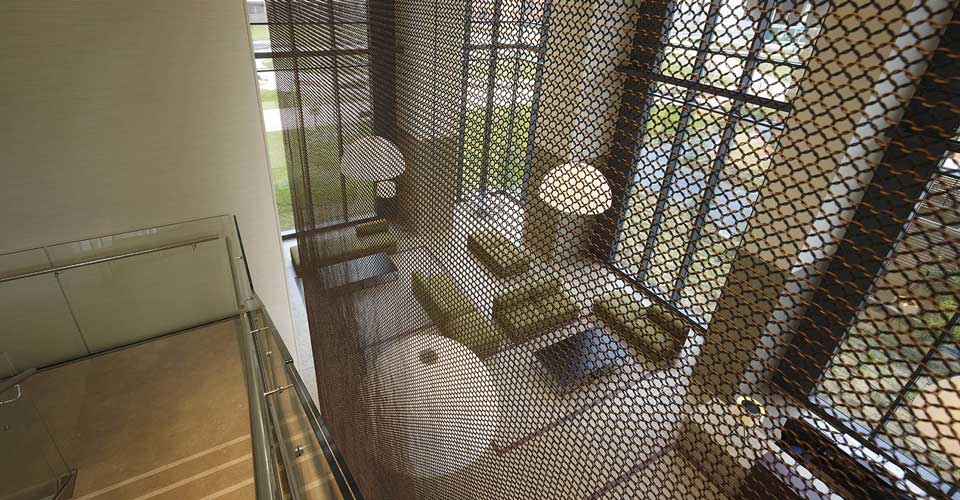

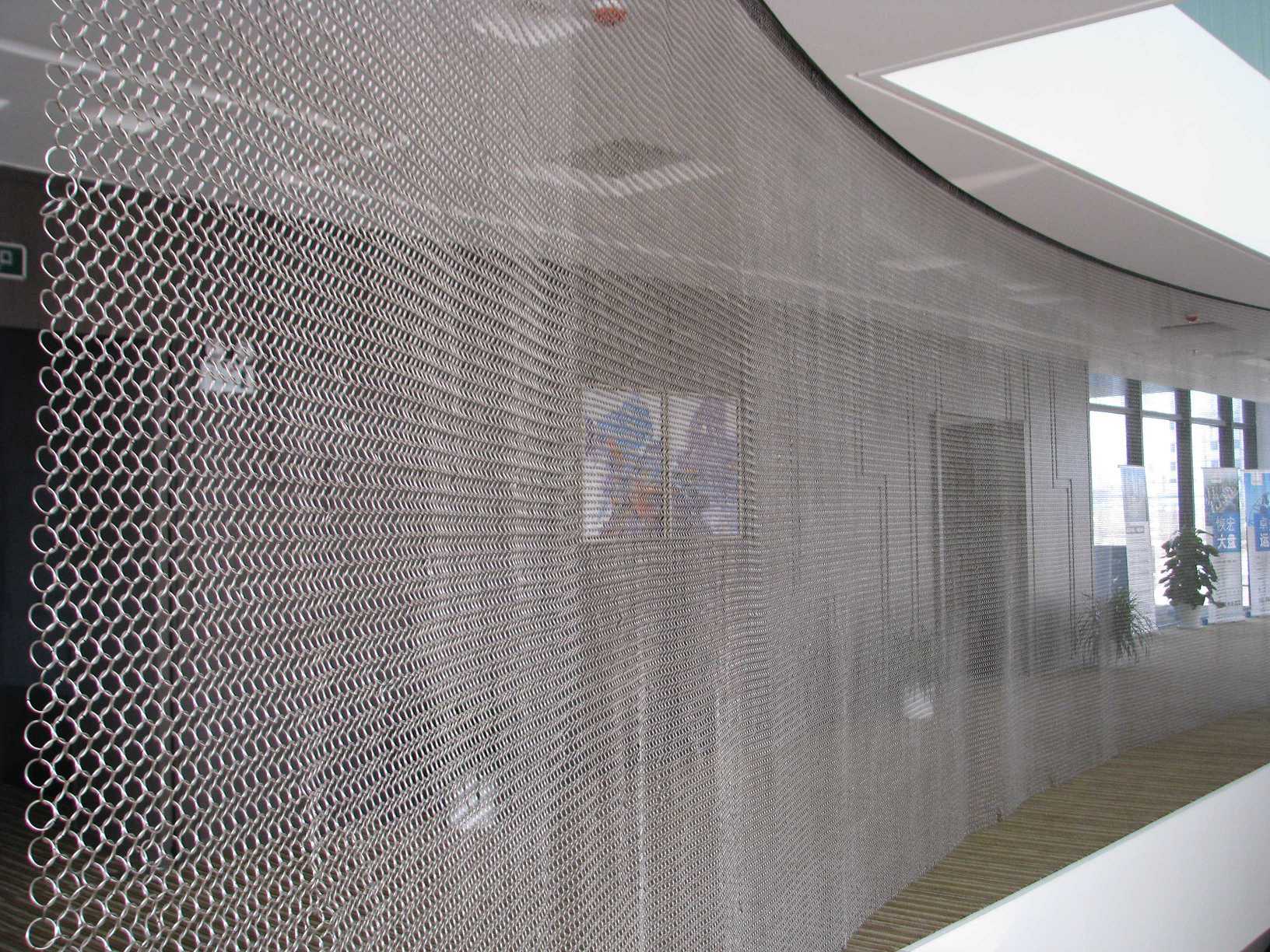

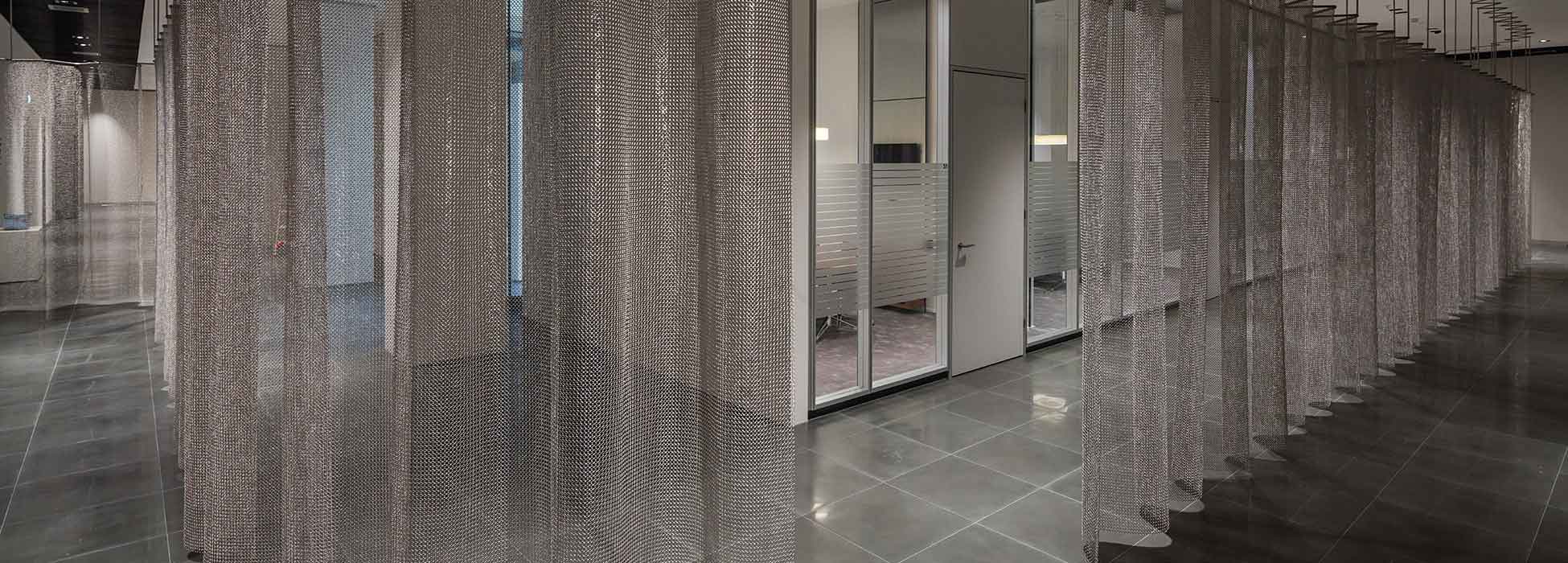

Interior and exterior partition curtain walls

Key material / spec

Stainless steel 304 / 316

Quotation basis

Dimensions, material, finish, quantity and application environment.

Product overview

Designed around project drawings, finish intent and installation conditions.

Ring mesh curtain, also named chainmail curtain or metal ring mesh, is an emerging type of architectural decorative curtain consisting of linked metal rings. Compared with individually-welded rings, the linked pattern creates supple, free-flowing sheets that are easy to pass through.

Thousands of individual rings combine into one large mesh curtain that can be twisted, bent, elongated or strained and still return intact without deformation.

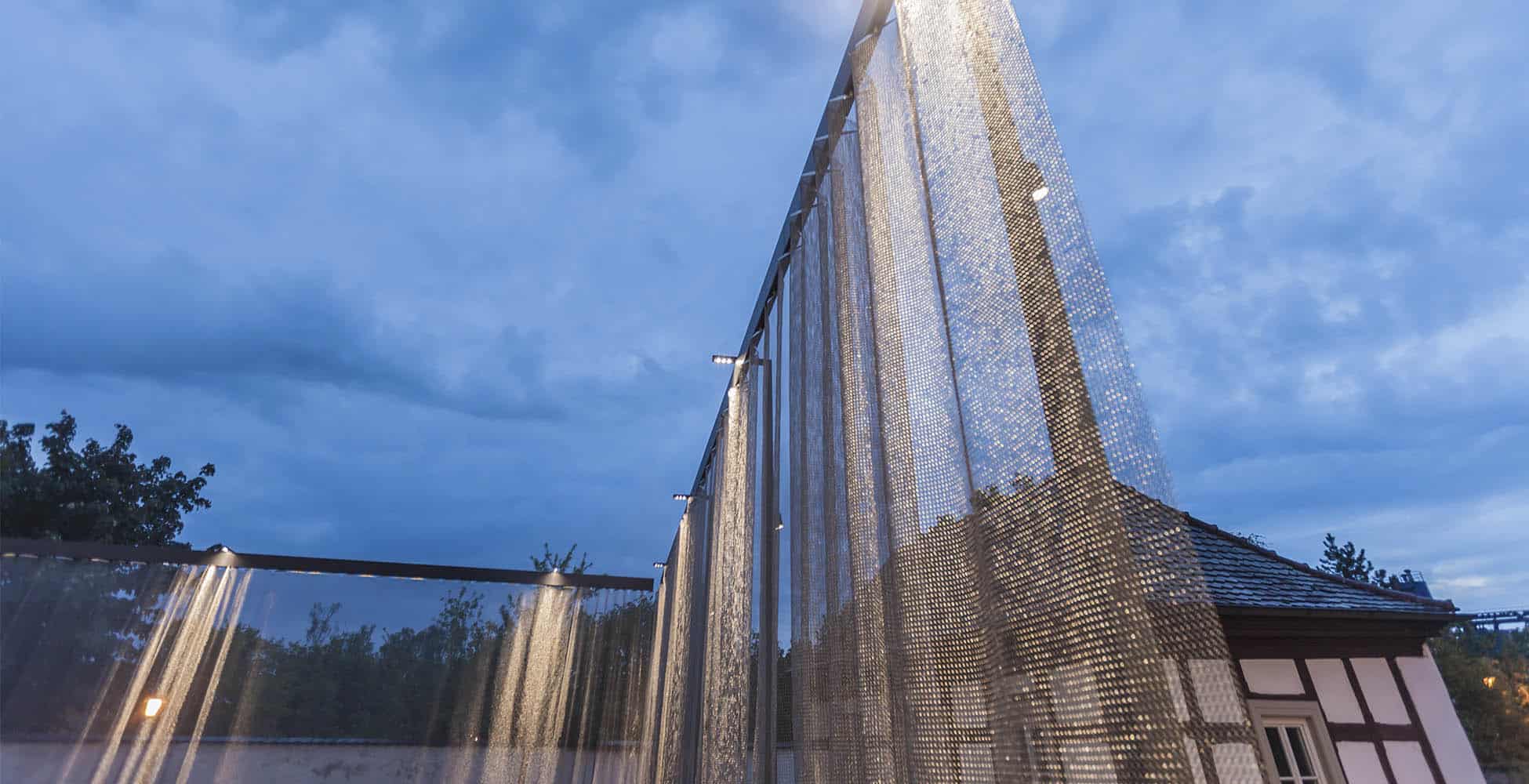

Compared with metal coil curtain and chain link curtain it has higher tensile strength. Excellent rust resistance gives it a longer service life, and its beautiful, low-maintenance appearance suits internal and external decoration, partition curtain walls, window treatments and lamp decoration.

Specification

Main specification reference

Use these values as the starting point. Final mesh opening, finish, panel size and installation method should be confirmed against drawings.

Material
Stainless steel 304 / 316
Wire diameter
0.5 mm – 2 mm

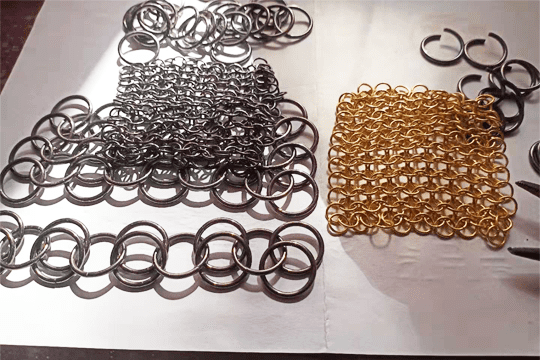

Aperture size
3.8 mm – 24 mm
Ring interface
Welded or non-welded
Weight
5 – 7 kg/m² (depending on aperture, shape and material)
Surface treatment
Anodic oxidation, color paint, polished
Color

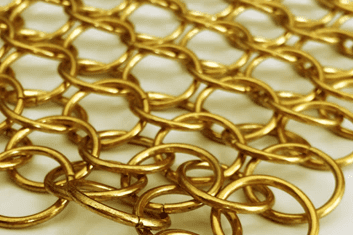

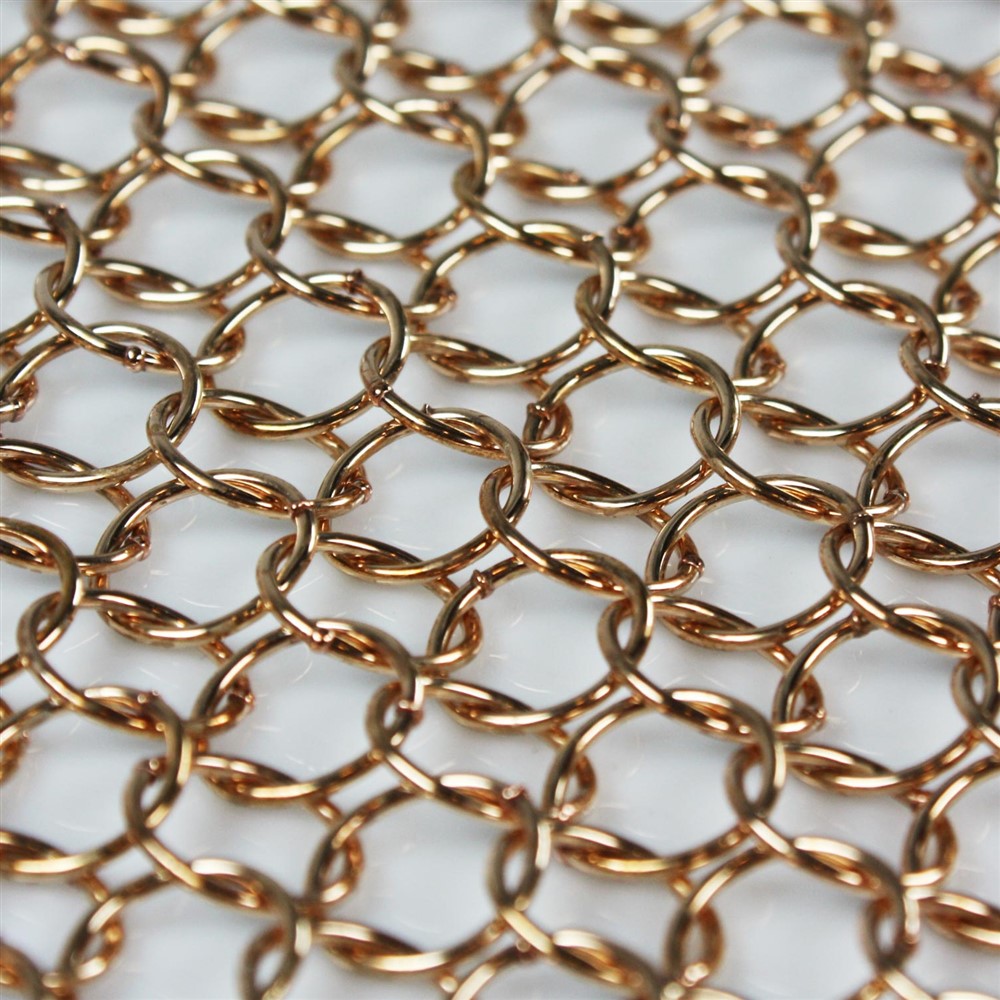

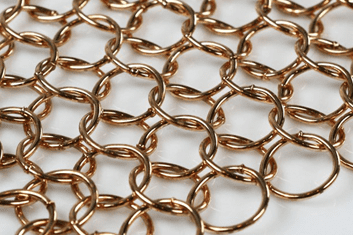

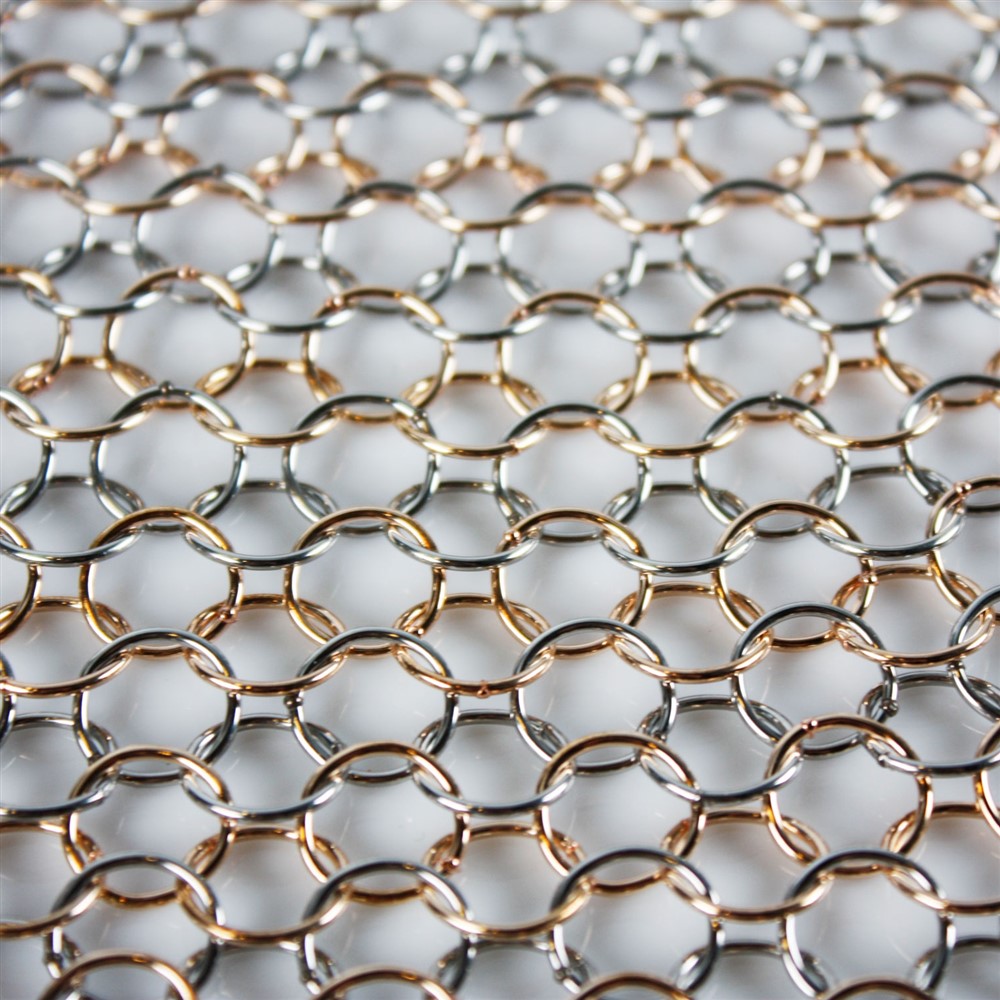

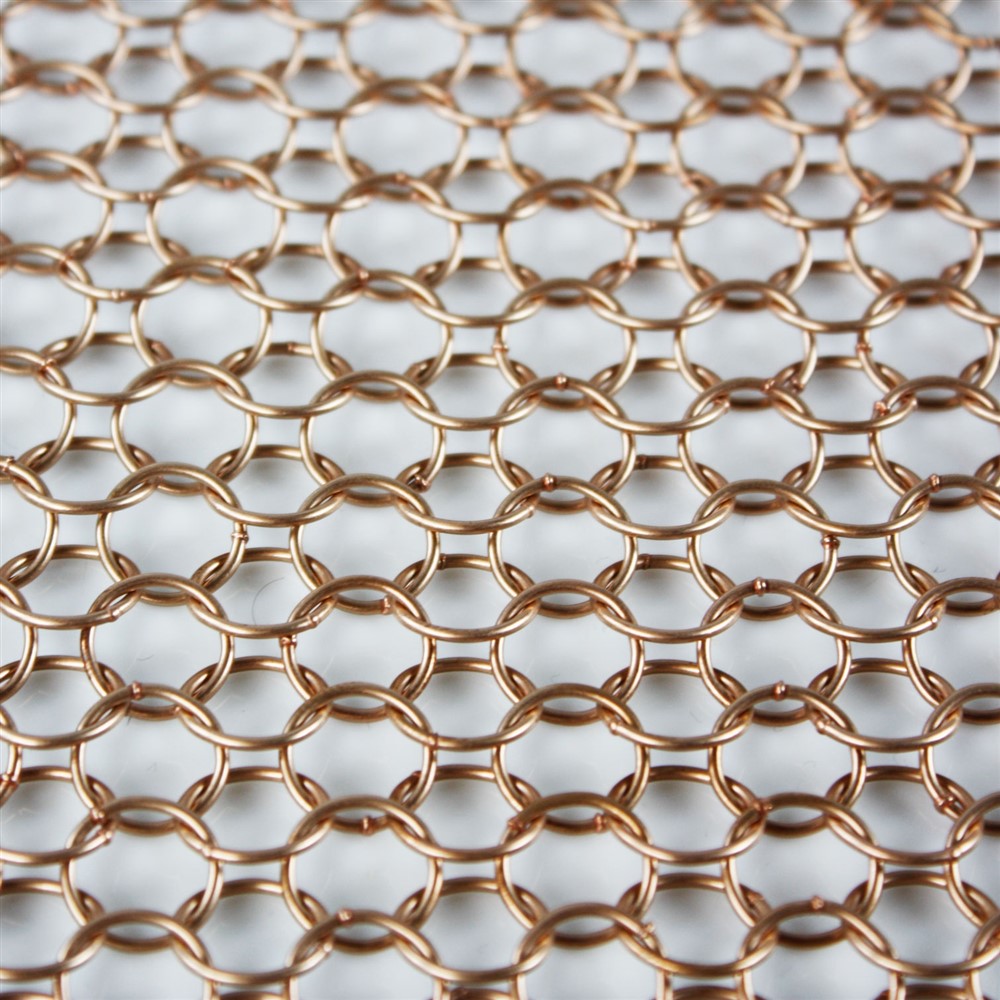

Silver, gold, copper or natural; other colors available

Visual reference

Product photos and detail views

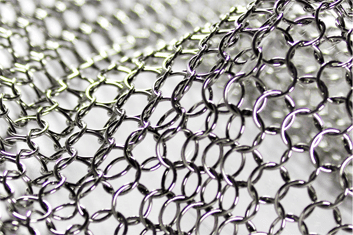

Chainmail Curtain (Ring Mesh) detail reference
Chainmail Curtain (Ring Mesh) detail reference

Original product content

Detailed product introduction and gallery

The detailed product descriptions and image displays from the original product pages are reorganized below for easier reading and comparison.

01

Chainmail Curtain

Ring mesh curtain , also named as chainmail curtain or metal ring mesh, is an emerging type of architectural decorative curtain. Ring mesh curtains consist of linked metal rings together. Compared with individually-welded rings, the linked pattern has supple and free-flowing sheets. These features make the curtain easy to pass through.

Ring mesh curtain is a kind of popular and functional metal chain curtain in the market. Many thousands of individual rings combine together to form a huge mesh curtain. And the ring mesh curtain is flexible,it can be used in various ways: twisted, bent, elongated or strained, it is still intact without deformation.

Compared with metal coil curtain, chain link curtain it has a high tensile strength that can withstand great tension. Ring mesh curtain has been recognized by more and more customers, on one hand, its excellent properties like high tensile strength and rust resistance ensure it has longer service time than ordinary curtain, on the other hand, it has beautiful appearance with low maintenance advantage that can be used as internal and external decoration, partition curtain wall, window treatments, lamp decoration, etc.

02

Main Specifications of Chainmail Curtain

Product name: Stainless steel ring mesh curtain,chainmail curtain

Material: Stainless steel 304/316.

Wire diameter: 0.5 mm – 2 mm.

Aperture size: 3.8 mm – 24 mm.

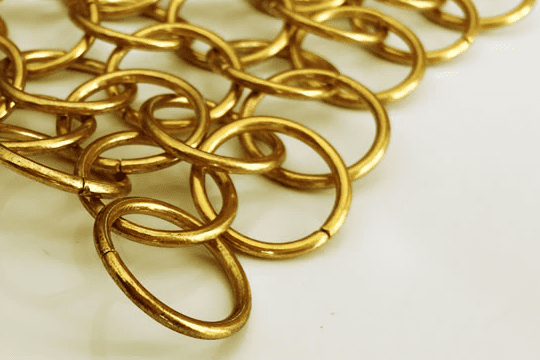

Interface of ring: Welded or non-welded.

Weight: 5 kg/m2 – 7 kg/m2 (depending on aperture size, shape and material chosen).

Surface treatment: anodic oxidation,color paint, polished.

Color: Silver, gold, copper or natural color. other colors are also available.

Chainmail Curtain (Ring Mesh) - Main Specifications of Chainmail Curtain

FAQ

Frequently asked questions

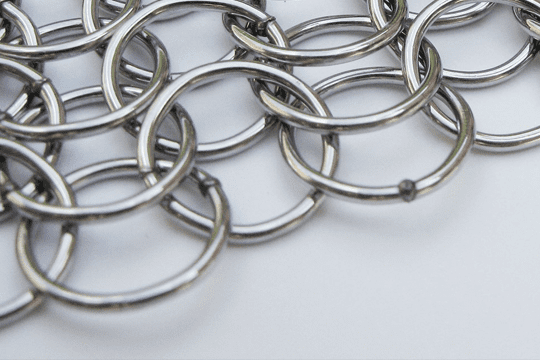

What is the difference between welded and non-welded rings?+

Welded rings are individually closed for maximum strength and security applications; non-welded linked rings flow more freely and cost less. We advise based on whether your project is decorative or protective.

Why choose 316 stainless steel over 304?+

316 contains molybdenum, giving stronger resistance to salt spray and chemical atmospheres. Choose it for coastal buildings or humid environments; 304 is fine for most interiors.
